150W Modular Led Flood Light
Product Name:
150W Modular Led Flood Light
Number :
FG150W19
:
:

Product Description:

150W Modular Led Flood Light

Outdoor led module flood light as a kind of artificial lighting to illuminate the area you need, in which it has no roofs-definitely in outdoor areas. The aim of outdoor modular led flood light is, by illuminating the area, to enhance visual performance of lighting so to be convenient for the persons conducting human activities.

The purpose of the outdoor modular led flood light is to enhance the performance of human activities during the light is dim or dark in condition of constructing, entertainment, playing, driving, etc. The increase in the efficiency of human activities during the night sometimes contributes, to some extent, to the increase in the efficiency of human activities during the day.

When installing tennis court lighting, we mainly concern two points: cost-effective and usability. Fanguang can provide the most cost-effective led lights for your project which can save more than 80% energy. Besides, the products have good illumination levels and even distribution of light across the whole ground (uniformity) to ensure good visibility enabling both players and spectators to watch the progress.

This Modular led flood light is mainly designed for sports court and area lighting. Due to its 180 lm/W LED chips for efficiency, it saves you up to 80% in energy use compared to traditional sports lighting.

The durability is greatly enhanced by IP65 waterproof design, which is essential to function well in harsh rainy weather. In addition, die-cast design for high wear resistance can withstands harsh outdoor conditions, passive cooling maximizes heat dissipation for a longer life of the luminaire. This product has 5 years warranty.

Its input voltage is 100 to 305V, hence it is suitable for almost every country. It has optional 3000K~5000K cool white color temperature, which is fits for most professional sports playground.

Besides, Fanguang Lighting can afford most of the rated wattage: 50~500W is optional.

Specifications
 LED FLOOD LIGHT POWER
150W
 INPUT VOLTAGE
 AC100~305V 50Hz/60Hz
 SHELL COLOR
 Matt black
 LED CHIPS
 Philips/Osram 3030
 LAMP LM/W
 140lm/w or 170lm/w
 Chips LEDs
 192PCS Philips 3030
 LUMEN (LM)
 21000LM/25500LM
 OPTIONAL BEAM ANGLE
 60°/90°/60°*150°
 OPTIONAL COLOR
 2700K-7000K
 LIFESPAN
 >80,000 Hours
 OPERATING TEMPERATURE
 ‐30C° ~ + 50C°
 STORAGE TEMPERATURE
 ‐40C° ~ + 80C°
 POWER FACTOR (PF)
 >0.95
 COLOR INDEX (CRI)
 80Ra
 CERTIFICATION
 CE, RoHS
 WEIGHT
 6.4KG
 DIMENSIONS
 315*283*130(mm)
 WATERPROOF GRADE
 IP65

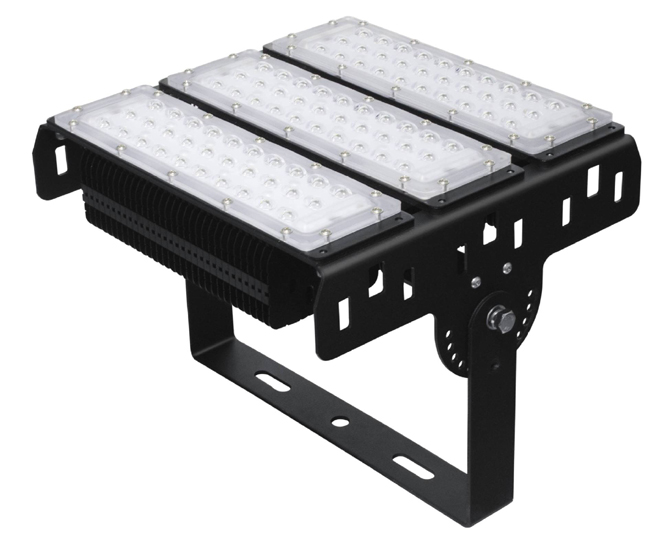

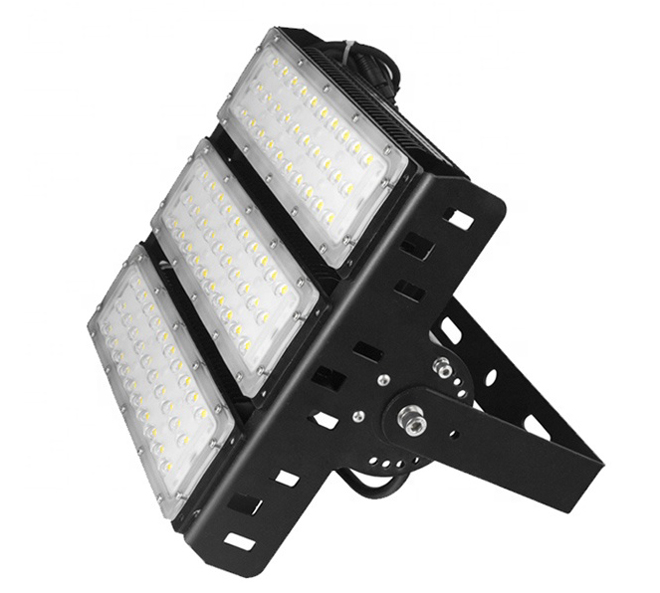

Product Pictures
150w-led-module-flood-light-1
150w-led-module-flood-light-2

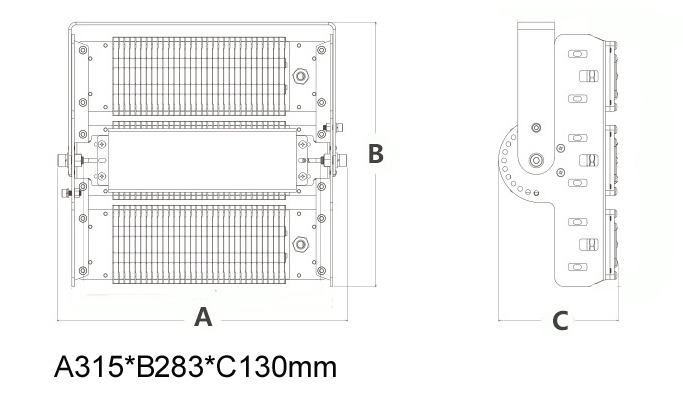

Prduct Size
150w-led-module-flood-light-size
Product Details
led-module-flood-light-details
led-module-flood-light-installation
Application Case
led-module-flood-light-application
