Led Hotel Downlight
Product Name:
Led Hotel Downlight
Number :
DLXXW05
:
:

Product Description:

are one of the most popular products we offer as they are used in a wide range of projects ranging from residential to commercial. LED Downlights can powerfully illuminate a room and upgrade its ambiance. They give a hidden look compared to other lighting since they are often recessed in the ceiling. In fact, our LED downlights offer the unique ability to cast light that seems as if it’s coming directly from the ceiling. As a result, using downlights helps optimize your lighting design, adding sleekness, modernity, and saving space.



supplied Led downlight product Family is a downlight System that impresses with its modular design. This primarily means free design possibilities for lighting designers due to a variety of different variants: round or square, trimless or with a narrow mounting edge, adjustable, fixed, or as a wall washer..

1) Led Downlight is not only a replacement for traditional halogen lamps in most applications but also as a replaceable LED lamp and driver set for a range of click-in frames, as a complete downlight solution;

 2) Recessed Led Downlights are a key component for many residential lighting designs. That is installed above the ceiling and shines down into a space;

 3) Surface-mounted Led downlights it is an ideal alternative to recessed downlights. This type of lighting comes in all shapes and sizes and is ideal for settings where there is little space between the structural ceiling and the dropdown ceiling, or when the ceiling is exposed;

 4) LED grille downlights (Gimbal LED Downlights)consume less power compared with conventional commercial lighting products, are designed and engineered for retrofit halogen gimbal downlights;

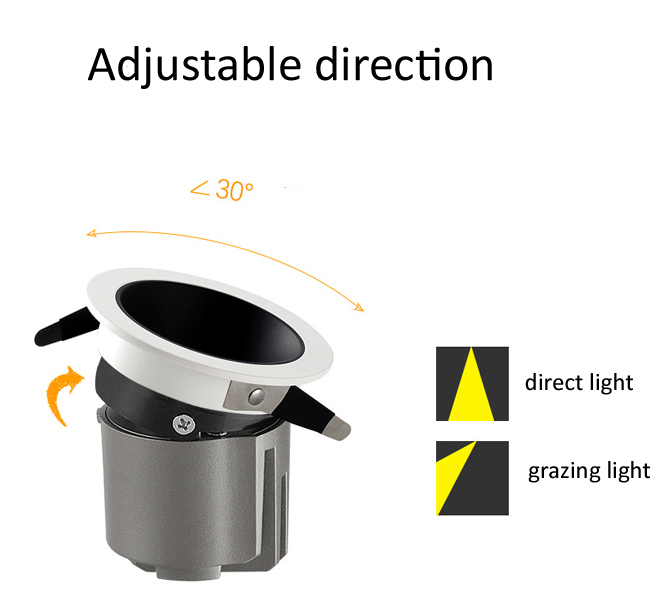

 5) Downlights that are semi recessed or pull out of the ceiling. Fully adjustable design with 355° rotation and 90° tilt allowing for directional adjustment in a variety of lighting applications.

Besides, Fanguang Lighting offer customized designs to meet projects requirement and custom-made package to the downlight is also possible.

Specifications
 LED DOWNLIGHT POWER
 5W~30W
 INPUT VOLTAGE
 AC100~305V 50Hz/60Hz
 SHELL COLOR
 Matt black
 LED CHIPS
 Cree/Bridgelux COB
 LAMP LM/W
 100lm/w
 Chips LEDs
 1PCS COB
 LUMEN (LM)
 500LM/3000LM
 OPTIONAL BEAM ANGLE
 15°/24°/36°
 OPTIONAL COLOR
 2700K-7000K
 LIFESPAN
 >50,000 Hours
 OPERATING TEMPERATURE
 ‐30C° ~ + 50C°
 STORAGE TEMPERATURE
 ‐40C° ~ + 80C°
 POWER FACTOR (PF)
 >0.95
 COLOR INDEX (CRI)
 80/90 Ra
 CERTIFICATION
 CE, RoHS
 DIMMABLE OPTIONAL
 Triac/0-10V/Dali
 COVER OPTIONAL
 Golden/Bright black/Bright silver/Black/White
 IP GRADE
 IP44

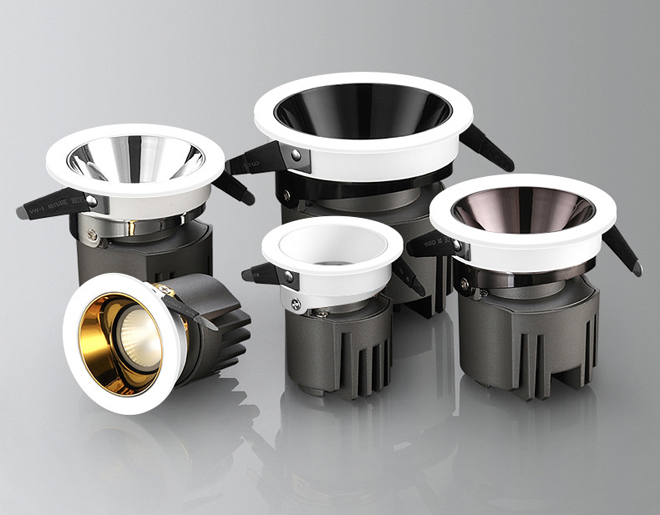

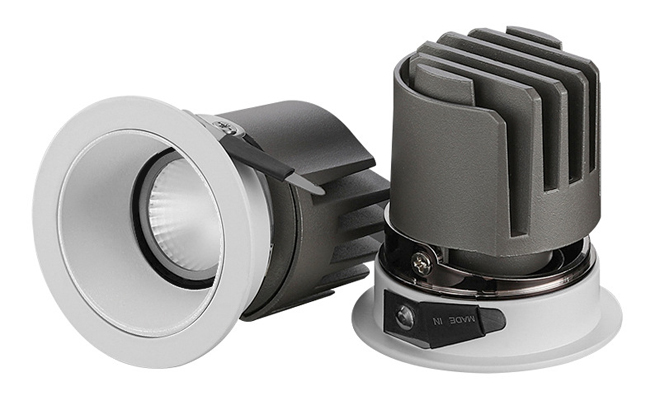

Product Pictures


led hotel downlight-1
led hotel downlight-2
Prduct Size
led hotel downlight-size

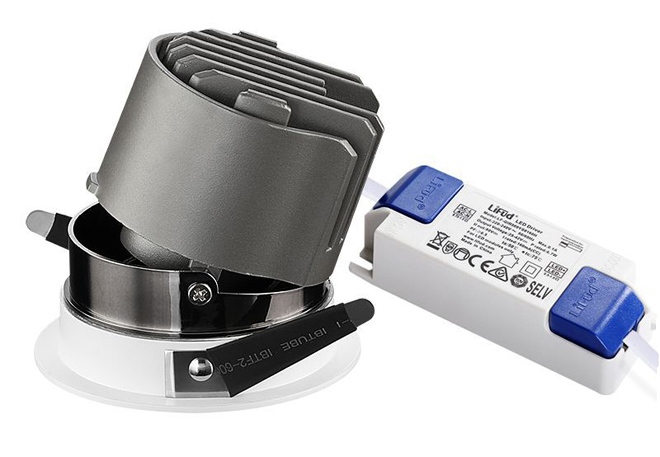

Product Details
led hotel downlight details-1
led hotel downlight details-2
led hotel downlight-details-3
led hotel downlight-details-6
led hotel downlight details-8

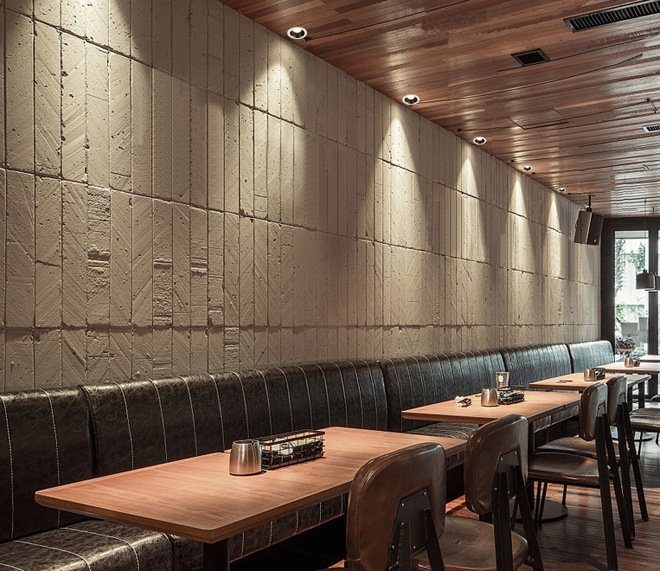

Application Case
led hotel downlight application-1
led hotel downlight application-2
led hotel downlight application-3
